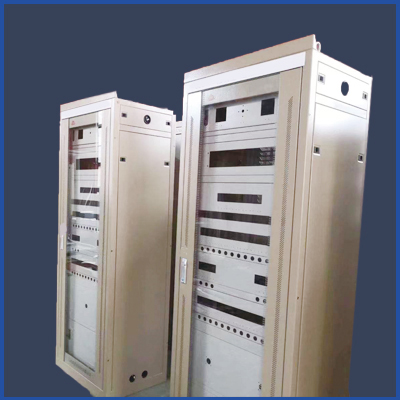

在精密電子設備高度集成的今天，機箱機柜的靜電防護性能已成為保障系統穩定運行的關鍵指標。靜電放電不僅可能導致元器件瞬間擊穿，還會引發數據傳輸異常、設備無故重啟等隱性故障。本文將從技術原理、檢測方法、指標解析三個維度，系統闡述如何科學評估機箱機柜的靜電防護能力。

In today's highly integrated precision electronic equipment, the electrostatic protection performance of chassis and cabinets has become a key indicator to ensure the stable operation of the system. Electrostatic discharge may not only cause instantaneous breakdown of components, but also lead to hidden faults such as abnormal data transmission and equipment restart without reason. This article will systematically explain how to scientifically evaluate the electrostatic protection capability of chassis cabinets from three dimensions: technical principles, detection methods, and indicator analysis.

　　靜電防護的核心技術邏輯

The core technical logic of electrostatic protection

　　靜電防護的本質是構建可控的電荷傳導路徑。機箱機柜通過兩種機制實現防護：一是采用導電或耗散材料，使靜電荷快速轉移接地系統；二是通過表面處理技術，將靜電場強度控制在閾值以下。理想的防護體系應同時具備低起電特性與的電荷消散能力，形成從外殼到內部設備的完整防護鏈。

The essence of electrostatic protection is to construct a controllable charge conduction path. High quality chassis cabinets achieve protection through two mechanisms: one is to use conductive or dissipative materials to quickly transfer static charges to the grounding system; The second is to control the electrostatic field strength below the safe threshold through surface treatment technology. The ideal protective system should have both low electrification characteristics and efficient charge dissipation capability, forming a complete protective chain from the outer shell to the internal equipment.

　　實驗室條件下的量化檢測方法

Quantitative testing methods under laboratory conditions

　　表面電阻率測試

Surface resistivity test

　　使用高阻計在標準環境（23℃±2℃，50%RH±5%）下，對機柜外殼、門板、導軌等部位進行多點測量。合格范圍應處于104Ω/□109Ω/□區間，該數值既保證靜電荷有效導走，又避免電流過大產生二次危害。測試時需注意電極壓力控制在0.5N/cm2，防止壓力變形影響結果。

Use a high resistance meter to measure multiple points on the cabinet shell, door panels, guide rails, and other parts in a standard environment (23 ℃± 2 ℃, 50% RH ± 5%). The qualified range should be between 104 Ω/□ and 109 Ω/□, which ensures effective conduction of static charges and avoids secondary hazards caused by excessive current. During testing, attention should be paid to controlling the electrode pressure at 0.5N/cm 2 to prevent pressure deformation from affecting the results.

　　體積電阻率驗證

Verification of volume resistivity

　　針對填充型導電材料，需切割100mm×100mm×4mm樣塊，通過絕緣電阻測試儀施加500V直流電壓，持續60秒后讀取穩定值。該指標反映材料內部導電網絡的連續性，要求不得低于10^3Ω·cm，確保電荷在三維空間均勻傳導。

For filled conductive materials, it is necessary to cut 100mm × 100mm × 4mm sample blocks, apply 500V DC voltage through an insulation resistance tester, and read the stable value after 60 seconds. This indicator reflects the continuity of the internal conductive network of the material, and is required to be no less than 10 ^ 3 Ω· cm to ensure uniform conduction of charges in three-dimensional space.

　　靜電衰減時限測定

Determination of static decay time limit

　　采用靜電衰減測試儀，對機柜表面施加5kV接觸放電，記錄電荷從初始值衰減10%所需時間。行業標準要求衰減時間≤2秒，該參數直接關聯設備對突發靜電事件的響應速度。

Using an electrostatic decay tester, apply a 5kV contact discharge to the surface of the cabinet and record the time required for the charge to decay from its initial value to 10%. The industry standard requires a decay time of ≤ 2 seconds, which is directly related to the response speed of the equipment to sudden static events.

　　系統接地連續性檢查

System grounding continuity check

　　使用低電阻測試儀，檢測機柜接地端子與保護地線間的導通電阻。合格標準為≤0.1Ω，該環節驗證整個防護系統的電氣完整性，避免接地不良導致電荷積聚。

Use a low resistance tester to test the conductivity between the cabinet grounding terminal and the protective ground wire. The qualification standard is ≤ 0.1 Ω, which verifies the electrical integrity of the entire protection system and avoids charge accumulation caused by poor grounding.

　　現場環境下的防護效能評估

Evaluation of protective effectiveness in on-site environment

　　工作電位動態監測

Dynamic monitoring of working potential

　　在設備運行環境中，使用非接觸式靜電場測試儀，對機柜門把手、通風口等操作部位進行實時電位檢測。正常工作狀態下，這些點位的電場強度應≤100V/cm，超出范圍可能引發人體接觸放電風險。

In the operating environment of the equipment, use a non-contact electrostatic field tester to perform real-time potential detection on operating parts such as cabinet door handles and ventilation openings. Under normal working conditions, the electric field strength at these points should be ≤ 100V/cm, and exceeding this range may pose a risk of human contact discharge.

　　摩擦起電特性模擬

Simulation of frictional electrification characteristics

　　通過標準布料以特定壓力（4.5N/cm2）和速度（30次/分鐘）對機柜表面進行摩擦，測試產生的感應電壓峰值。防護材料應將摩擦電壓控制在50V以?xún)?nèi)，顯著降低日常維護中的靜電產生概率。

Test the peak induced voltage generated by rubbing the cabinet surface with standard fabric at a specific pressure (4.5N/cm 2) and speed (30 times/minute). High quality protective materials should control the friction voltage within 50V, significantly reducing the probability of static electricity generation during daily maintenance.

　　電磁屏蔽效能驗證

Electromagnetic shielding effectiveness verification

　　雖然不直接關聯靜電防護，但良好的電磁屏蔽（≥60dB@1GHz）可減少外部電場對機柜內電荷分布的影響。采用網絡分析儀進行S參數測試，確保屏蔽完整性不受結構件接縫影響。

Although not directly related to electrostatic protection, good electromagnetic shielding (≥ 60dB@1GHz ）It can reduce the impact of external electric fields on the charge distribution inside the cabinet. Using a network analyzer for S-parameter testing to ensure shielding integrity is not affected by structural component joints.

　　檢測實施的關鍵控制點

Key control points for testing implementation

　　環境預處理：檢測前需將樣品置于標準環境48小時以上，溫濕度對材料電性能的影響

Environmental pretreatment: Before testing, the sample needs to be placed in a standard environment for at least 48 hours to eliminate the influence of temperature and humidity on the electrical properties of the material

　　清潔度管理：被測表面需用異丙醇脫脂處理，避免污染物形成絕緣層干擾測試

Cleanliness management: The tested surface needs to be degreased with isopropanol to avoid the formation of insulation layer interference caused by pollutants during testing

　　多點位覆蓋：每個檢測項目少選取5個代表性點位，關注焊接點、折彎處等工藝薄弱環節

Multi point coverage: Select at least 5 representative points for each testing item, with a focus on weak process links such as welding points and bends

　　儀器校準：所有測試設備需通過CNAS認證計量機構的年度檢定，確保數據溯源性

Instrument calibration: All testing equipment must undergo annual calibration by CNAS certified metrology institutions to ensure data traceability

　　靜電防護性能檢測是機箱機柜質量管控的核心環節，需要構建實驗室量化評估與現場效能驗證相結合的立體檢測體系。通過科學嚴謹?shù)臏y(cè)試流程，不僅可驗證產品的防護可靠性，更能為系統集成商提供關鍵選型依據，終保障電子信息系統在復雜電磁環境中的穩定運行。

Static protection performance testing is the core link of quality control for chassis and cabinets, which requires the construction of a three-dimensional testing system that combines laboratory quantitative evaluation and on-site effectiveness verification. Through a scientifically rigorous testing process, not only can the protection reliability of the product be verified, but it can also provide key selection criteria for system integrators, ultimately ensuring the stable operation of electronic information systems in complex electromagnetic environments.
